3000W TVS Transient Voltage Suppressor Diode For Surface Mounted Applications

Name: 3000W TVS Transient Voltage Suppressor Diode For Surface Mounted Applications
Brand: XUYANG
Price: 1 USD

Cheap 3000W TVS Transient Voltage Suppressor Diode For Surface Mounted Applications for sale

Brand Name : XUYANG

Model Number : SMDJ5.0C-SMDJ220C

Certification : ISO9001

Place of Origin : China

MOQ : 3000pcs

Price : negotiation

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 500000pcs/month

Packaging Details : 3000pcs/box

Name : SMDJ5.0C-SMDJ220C

Watt : 3000W

Voltage : 5.0-220V

Package : SMC

SPQ : 3000pcs

Packing : Tape in reel

Contact Now

3000W Surface Mount Transient Voltage Suppressors SMDJ5.0C-SMDJ220C SMC DO-214AB Plastic case

FEATURES:

For surface mounted applications in order to optimize
board space
Low leakage
Uni and Bi-directional unit
Glass passivated junction
Low inductance
Excellent clamping capability
3000W Peak power capability at 10 × 1000µs waveform
Repetition rate (duty cycle):0.01%
Fast response time: typically less than 1.0ps from 0 Volts
to V BR min
Typical I R less than 5μA above 12V.
High Temperature soldering: 260°C/40 seconds at
terminals
Typical maximum temperature coefficient ΔV BR = 0.1% ×
V BR @25°C× ΔT
Plastic package has Underwriters Laboratory Flammability
94V-0
Matte tin lead–free Plated
Halogen free and RoHS compliant
Typical failure mode is short from over-specified voltage or
current
Whisker test is conducted based on JEDEC JESD201A
per its table 4a and 4c
IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
ESD protection of data lines in accordance with IEC
61000-4-2 (IEC801-2)
EFT protection of data lines in accordance with IEC
61000-4-4 (IEC801-4)

Applications

TVS devices are ideal for the protection of I/O interfaces, V CC
bus and other vulnerable circuits used in Telecom, Computer,
Industrial and Consumer electronic applications.

PART NUMBER

ADD C FOR BI-DIRECTIONAL

REVERSE STAND-OFF VOLTAGE

BREAKDOWN VOLTAGE

VBR (V)

BREAKDOWN VOLTAGE

VBR (V)

TEST CURRENT IT

MAXIMUM CLAMPING VOLTAGE

PEAK PULS CURREN

REVERSE LEAKAGE @VRWM

MARKING CODE

See Note 1

VRWM (V)

MIN. @IT

MAX. @IT

(mA)

@Ipp Vc (V)

Ipp (A)

IR( A)

UNI

SMDJ5.0(C)

SMDJ5.0(C)A

SMDJ6.0(C)

SMDJ6.0(C)A

5.0

6.0

6.40

6.67

7.00

7.37

9.2

10.3

326.09

291.26

800

RDE

RDG

DDE

DDG

SMDJ6.5(C)

SMDJ6.5(C)A

SMDJ7.0(C)

SMDJ7.0(C)A

6.5

7.0

7.22

7.78

7.98

8.60

11.2

12.0

267.86

250.00

500

200

RDK

PDM

DDK

DDM

PDM

SMDJ7.5(C)

SMDJ7.5(C)A

SMDJ8.0(C)

SMDJ8.0(C)A

7.5

8.0

8.33

8.89

9.21

9.83

12.9

13.6

232.56

220.59

100

PDP

PDR

DDP

DDR

SMDJ8.5(C)

SMDJ8.5(C)A SMDJ9.0(C) SMDJ9.0(C)A

8.5

9.0

9.44

10.0

10.40

11.10

14.4

15.4

208.33

194.81

PDT

PDV

DDT

DDV

SMDJ10.0(C) SMDJ10.0(C)A

SMDJ11.0(C) SMDJ11.0(C)A

11.1

12.2

12.30

13.50

17.0

18.2

176.47

164.84

PDX

PDZ

DDX

XDX

DDZ

SMDJ12.0(C) SMDJ12.0(C)A SMDJ13.0(C)

SMDJ13.0(C)A

13.3

14.4

14.70

15.90

19.9

21.5

150.75

139.53

PEE

PEG

DEE

DEG

SMDJ14.0(C)

SMDJ14.0(C)A SMDJ15.0(C) SMDJ15.0(C)A

15.6

16.7

17.20

18.50

23.2

24.4

129.31

122.95

PEK

PEM

DEK

DEM

SMDJ16.0(C) SMDJ16.0(C)A SMDJ17.0(C) SMDJ17.0(C)A

17.8

18.9

19.70

20.90

26.0

27.6

115.38

108.70

PEP
PEP

PER

DEP

DER

SMDJ18.0(C) SMDJ18.0(C)A SMDJ20.0(C) SMDJ20.0(C)A

20.0

22.2

22.20

24.50

29.2

32.4

102.74

97.47

PET

PEV

DET

DEV

SMDJ22.0(C) SMDJ22.0(C)A SMDJ24.0(C) SMDJ24.0(C)A

24.4

26.7

26.90

29.50

35.5

38.9

84.51

77.12

PEX

PEZ

BEW

BEX

BEY

BEZ

SMDJ26.0(C) SMDJ26.0(C)A SMDJ28.0(C) SMDJ28.0(C)A

28.9

31.1

31.90

34.40

42.1

45.4

71.26

66.08

PFE

PFG
PFG

DFE

DFG

SMDJ30.0(C) SMDJ30.0(C)A SMDJ33.0(C) SMDJ33.0(C)A

33.3

36.7

36.80

40.60

48.4

53.3

61.98

56.29

PFK

PFM

DFK

DFM

SMDJ36.0(C) SMDJ36.0(C)A SMDJ40.0(C) SMDJ40.0(C)A

40.0

44.4

44.20

49.10

58.1

64.5

51.64

46.51

PFP

PFR

DFP

DFR

SMDJ43.0(C) SMDJ43.0(C)A SMDJ45.0(C) SMDJ45.0(C)A

47.8

50.0

52.80

55.30

69.4

72.7

43.23

41.27

PFT

PFV

DFT

DFV

SMDJ48.0(C) SMDJ48.0(C)A SMDJ51.0(C) SMDJ51.0(C)A

53.3

56.7

58.90

62.70

77.4

82.4

38.76

36.41

PFX

PFZ

DFX

DFZ

SMDJ54.0(C) SMDJ54.0(C)A SMDJ58.0(C) SMDJ58.0(C)A

60.0

64.4

66.70

71.10

87.1

93.6

34.44

32.05

PGE

PGG

DGE

DGG

SMDJ60.0(C) SMDJ60.0(C)A SMDJ64.0(C) SMDJ64.0(C)A

66.7

71.1

73.70

78.60

96.8

103.0

30.99

29.13

PGK

PGM

DGK
DGK

DGM

SMDJ70.0(C) SMDJ70.0(C)A SMDJ75.0(C) SMDJ75.0(C)A

77.8

83.3

86.00

92.10

113.0

121.0

26.55

24.79

PGP

PGR

DGP

DGR
DGR

SMDJ78.0(C) SMDJ78.0(C)A SMDJ85.0(C) SMDJ85.0(C)A

86.7

94.4

95.80

97.60

126.0

137.0

23.81

23.15

PGT

PGV

DGT

DGV

SMDJ90.0(C) SMDJ90.0(C)A SMDJ100.0(C) SMDJ100.0(C)A

100

111

111.00

123.00

146.0

162.0

20.55

18.52

PGX

PGZ

PGX

PGZ

SMDJ110.0(C) SMDJ110.0(C)A SMDJ120.0(C)

SMDJ120.0(C)A

110

120

122

133

135.00

147.00

177.0

193.0

16.95

15.54

PHE

P}HE

PHG

DHE

DHG

SMDJ130.0(C) SMDJ130.0(C)A SMDJ140.0(C) SMDJ140.0(C)A

130

140

144

155

159.00

171.00

209.0

226.8

14.35

13.23

PHK
PHK

PHB

DHK

DHB

SMDJ150.0(C) SMDJ150.0(C)A SMDJ160.0(C) SMDJ160.0(C)A

150

160

167

178

185.00

198.00

197.00

243.0

259.0

12.35

11.58

PHM

pHP

PHP

DHM

DHP

SMDJ170.0(C) SMDJ170.0(C)A SMDJ180.0(C) SMDJ180.0(C)A

170

180

189

201

209.00

220.00

275.0

291.6

10.91

10.29

PHR

HHT

DHR

DHT

SMDJ220.0(C) SMDJ220.0(C)A

220

246

272.00

356.0

8.43

HIE

IIE

Note: For Bi-Directional devices having V RWM of 10 volts and under, the I R limit is double

3000W TVS Transient Voltage Suppressor Diode For Surface Mounted Applications
Drawing:

What can we You from XUYANG?

Best service: with 10 years experience in exporting sales staff will service you.

High quality: help you to avoid purchasing risk.

Short delivery: help you to save time.

Competitive price: the price is not the lowest but the highest cost performance

OEM/ODM: we are confident we can meet you OEM/ODm requirements.

Product Tags:

transient suppression diode

tvs transient voltage suppressor

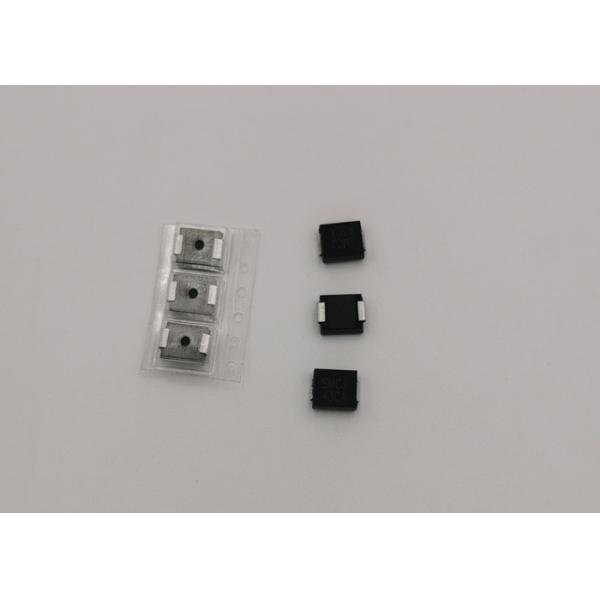

3000W TVS Transient Voltage Suppressor Diode For Surface Mounted Applications Images
